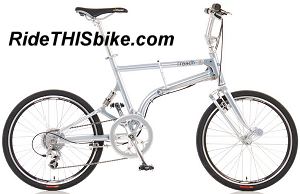

Bred from a racing lineage but built for city streets, the IF Reach is all that a bicycle should be. Based on the Pacific Reach (a popular bike among triathletes), the IF Reach has the geometry of a full sized bike but the agility demanded by bike messengers. With 20" wheels and a performance suspension, jumping curbs on the IF Reach is a piece of cake. And when a car door opens right in front of you or a pedestrian walks blindly into your path, this machine responds with lightning speed.
Folds/Unfolds FAST By Design
On the IF Reach, folding was NOT an afterthought.
By design, the frame folds/unfolds quickly and easily
(@ 3 seconds). When folded, both the front and rear
wheels mate up precisely and are held together with
magnets, allowing the bike to roll almost effortlessly
when folded.
Patented Integrated Folding (IF) System
The
folding system employed on the IF Reach is Pacific's
patented Integrated Folding mechanism. Instead of
using a big hinge that can flex under load, the
IF System consists of 2 solid, stainless steel tensioning
bars, one on either side of the top tube. The left
tension bar is permanently attached on both ends;
the right bar is permanently attached at the rear
and has a quick release lever on the front. Drop
the right tension bar into the receptacle at the
front of the frame, then close the quick release
lever and the bike's ready to ride. To fold the
bike, open the same quick release and lift the right
tensioning bar. The left tensioning bar then guides
the two halves of the frame smartly together.
Specs:

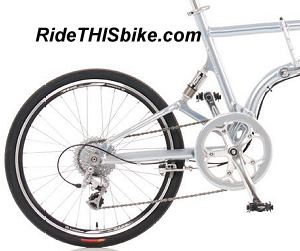

* Frame: Pacific AL7005 aluminum frame with
rear swingarm
* Fork: Pacific AL7005 trailing link suspension
fork
* Color: White
* Headset: AL-2 1-1/8 H:275mm A-head type
* BB: VP ISIS
* Seat post: Alloy 2D forged head 30.9mm 400mm
* Tires: Primo Comet 20x1-3/8 (37-451) 85psi
* Rims: Alex DA22 32H w/GSW
* Hubs: Chosen Alloy 32H
* Chainwheel: Drive Line 53/39T CNC outer chainring 170mm
* Chain: KMC HG-53
* Freewheel: Cassette 11-32T 9speed
* Derailleur: F: Shimano FD-R440 / R: Deore LX
* Shifter: Shimano SL-R440 for flat bar
* Saddle: Velo 3126 silver bumper
* Pedals: VP Folding
* Handlebars: Pacific IF Reach Alloy butted 520mm
* Stem: Pacific IF Reach custom alloy folding
* Brakes: Tektro RX5 liner spring design
* Brake Lever: Tektro RX 1.0for mini V-brake
* Suspension Unit: Pacific Elastomer 120mm
* Optional: Carry bag, Rear Carrier, Kickstand, Fender
Folded Dimensions: 36" x 16" x
26"
Weight: 26 lbs
Ships FREE Lower 48 US only. Call 504-324-2492
or email us for shipping quotes to Alaska, Hawaii,
APO's & Canada.
Note: Every effort has been made to ensure the accuracy
of this description; however, bike specifications,
features, and colors are subject to change without
prior notice.
